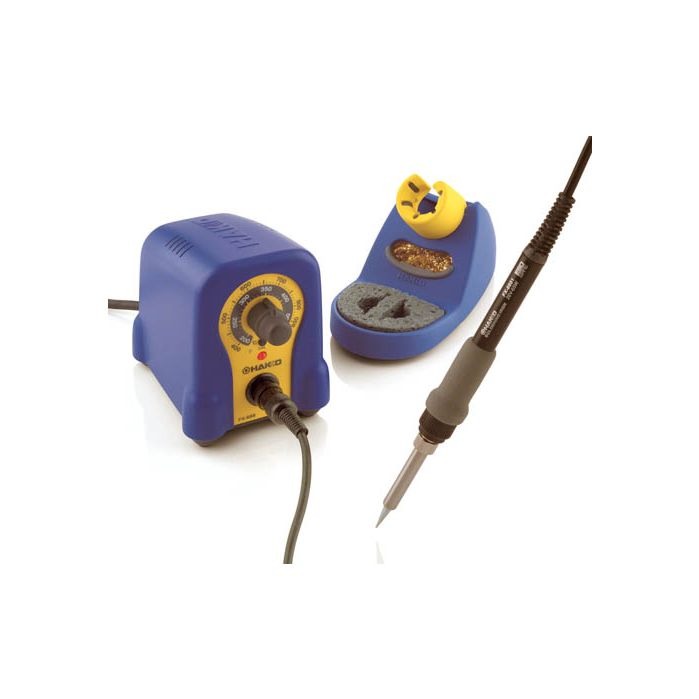

Накко FX888 Soldering Station

Product Description

The Hakko FX-888 is an inexpensive yet durable temperature adjustable soldering station that provides more power and takes up less bench space than its predecessor (Hakko 936). The added power of the FX-888 provides up to a 30% increase in operator productivity due to the increased thermal performance and faster thermal recovery time. Today, workbench space is at a premium, and the FX-888 uses approximately 35% less surface area compared to the Hakko 936.

 Other features include:

 • adjustable temperature control with lock/set screw

• temperature range 392°-896°F (200°- 480°C)

• maintains idle temperature within 1.8°F (1°C)

 • ceramic heating element and sensor ensures rapid heat-up temperature and fast thermal recovery

• Celsius and Fahrenheit temperature display

 • temperature adjusted by simply turning the dial

 • wide selection of tips available for soldering SMD and through-hole applications

Model Name FX-888

Part Number FX888-23BY

Power Consumption70W /120VAC

SOLDERING STATION

Temperature200°C - 480°C (392°F - 896°F)

Temperature Stability±1.0°C (1.8°F)

Temperature Control Closed-loop sensor

Outer Dimensions100(W) x 120(H) x 130(D) mm3.9(W) x 4.7(H) x 5.1(D) in.

Weight (w/o cord)Approx. 1.3 kg (2.9 lbs)

ESD Safe Yes

SOLDERING IRON

Model NameFX-8801

Power Consumption65W / 26VAC

Standard TipT18-D16

Tip-to-Ground Resistance< 2 ohms

Tip-to-Ground Potential< 2mV

Heating ElementCeramic

Hand piece Length190mm (7.5 in.)

Cord Length1.2m (4 ft.)

Weight (w/o cord)44g (0.09 lb)
