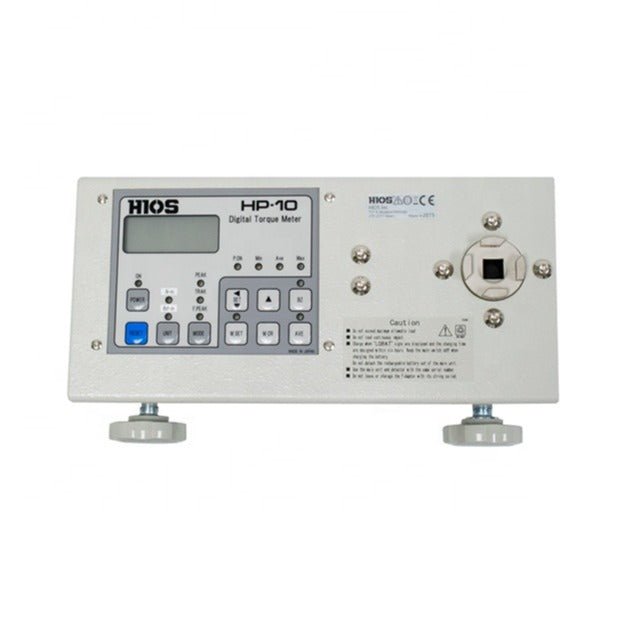

Hios HP-10 Digital Torque Tester

Use for making torque settings on electric screwdrivers, checking torque of torque wrenches or measuring torque of various rotating units, etc.

● Measured data can be imported to a computer.

● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).

● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).

 ● New product, HP-1 is ideal for measuring 10N･cm or smaller torque.

 ● Torque for both clockwise or counterclockwise can be measured.

 ● As a standard specificataon, data output and analogue output are available.

● We offer calibration and maintenance services.

● “Inspection Report” is attached to all the Torque Meters.

Peak mesuring range

N・m 0.015-1

kgf・cm 0.15-10

lbf・in 0.15-9

Accuracy Within ±0.5% (F.S.)

Measuring models TRACK, PEAK, FIRST PEAK

External Dimensions(mm) 230 ×124 ×65.2 (H)

Weight(g) 1.8kg

Charging time 1.2V NiMH x 5 cells 1,000mA (within 6 hours)

Continuous operating time on a full charge 8 hours

Battery life Exclusive battery charger About 300 charges
